Orion DIN18 Bottles

Miron violet glass Orion 5 ml DIN18 dropper bottle, Miron item id FL-5 / HF2678-204. Without cap / closure. This bottle fits all DIN18 caps with the exception of pipette caps for other bottle sizes and the wide pourer caps.

Specifications:
Height : 53,2 ±0,6 mm (may deviate 0,6 mm, so 52,6 or 53,6 mm)
Diameter: 22,5 +0,7/-0,4 mm (may be 0,7 mm larger or 0,4 mm smaller)
Weight : 27 gr
Thread norm : DIN 168 / GL 18 (DIN18) Capacity to fill point 5 ml
Capacity brimfull 7,0 ±0,7 ml (may deviate 0,7 ml either way)

The amount after the ±- sign indicates the possible deviation that can occur during the production process.
i.e. 70,0 ± 0,7 mm means that the size is 70 mm is, with a possible downwards or upwards deviation of 0,7 mm (69,93 mm or 70,07 mm)



Miron violet glass 5 ml Orion DIN18 dropperbottle, Miron item id FL-5 / HF2678-204. Without cap / closure. This bottle fits all DIN18 caps with the exception of pipette caps for other bottle sizes and the wide pourer caps.

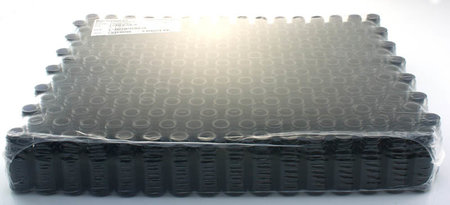

Safe-pack containing 224 pcs. Also available individually.



Miron violet glass 10 ml standard height DIN18 bottle FL-10-63. No cap / closure. This bottle fits almost all DIN18 caps. The exceptions are pipette caps for other bottle sizes and the wide pourer caps.

Height : 63,8 ±0,7 mm
Diameter: 24,8 +0,7 / -0,7 mm
Weight : 29 gr
Thread norm : DIN 168 / GL 18 (DIN18) Capacity to fill point : 10 ml
Capacity brimfull : 12,5 ±1,0 ml



The amount after the ±- sign indicates the possible deviation that can occur during the production process.
i.e. 70,0 ± 0,7 mm means that the size is 70 mm is, with a possible downwards or upwards deviation of 0,7 mm (69,93 mm or 70,07 mm)


Miron violet glass 10 ml standard height DIN18 bottle FL-10-63. No cap / closure. This bottle fits almost all DIN18 caps. The exceptions are pipette caps for other bottle sizes and the wide pourer caps.

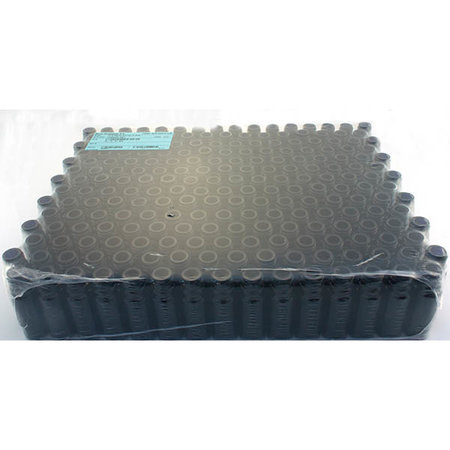

Safe-pack containing 202 pcs. Also available individually.


Miron violet glass 10 ml bottle Orion, high model, Miron article number FL-10-70 / HF2844-204. DIN18. Without cap / closure. This bottle fits all DIN18 caps, except for the pipette caps for other bottle sizes and the wide pourer caps. A selection of caps that fit this bottle is listed further down on this page.

Height 70,0 ±0,7 mm
Diameter: 23,5 +0,8 / -0,4 mm
Weight : 35 gr
Thread norm : DIN 168 / GL 18 (DIN18) Capacity to fill point 10 ml
Capacity brimfull : 12,5 ±1,0 ml

The amount after the ±- sign indicates the possible deviation that might occur during the production process.
i.e. 70,0 ± 0,7 mm means that the size is 70 mm is, with a possible downwards or upwards deviation of 0,7 mm (69,93 mm or 70,07 mm)

Miron violet glass 10 ml Orion DIN18 bottle, 70 mm high (high version), Miron item id FL-10-70 / HF2844-204. DIN18. This bottle fits all DIN18 caps, except for the pipette caps for other bottle sizes and the wide pourer caps.

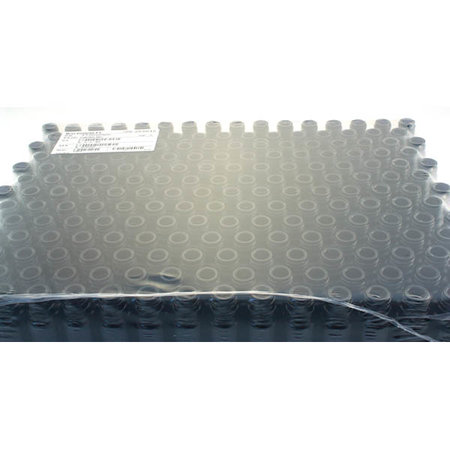

Safe-pack containing 217 pcs. Also available individually.

Miron violet glass 15 ml DIN18 bottle Orion, Miron item id HF12697-204 / FL-15. Without cap. All suitable caps for this bottle are listed under related items. This bottle fits all DIN18 caps that aren't specifically made for one size bottle (like pipette caps or the wide pourer caps)

Height : 70,5 ±0,7 mm (can deviate 0,7 mm)
Diameter: 29,0 +1,0 / -0,5 mm (can be 0,1 mm larger or 0,5 mm smaller)
Weight : 46 gr
Thread norm : DIN 168 / GL 18 (DIN18) Capacity to fill point : 15 ml
Capacity brimfull : 19,0 ±1,5 ml (can deviate 1,5 ml either way)

The amount after the ±- sign indicates the possible deviation that can occur during the production process.
i.e. 70,0 ± 0,7 mm means that the size is 70 mm is, with a possible downwards or upwards deviation of 0,7 mm (69,93 mm or 70,07 mm)


Miron violet glass 15 ml Orion DIN18 dropper bottle, Miron item id: FL-15 / HF12697-204. NO CLOSURE. All suitable closures for this bottle are listed under related items. This bottle fits all DIN18 caps that aren't specifically made for one size bottle (like pipette caps or the wide pourer caps)

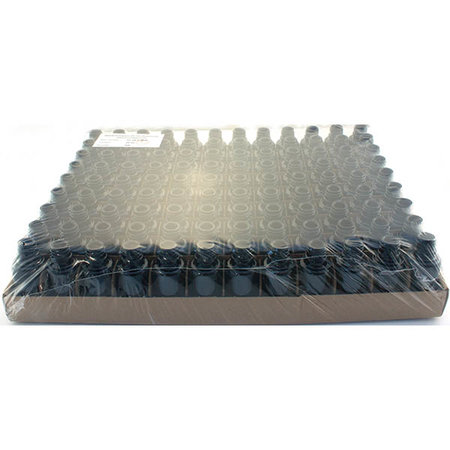

Safe-pack containing 138 pcs. Also available individually.


Miron violet glass 20 ml Orion bottle, DIN18. Miron item id SM130004-204 / FL-20. Without cap/closure. A selection of suitable caps is listed further down on this page. The bottle fits the pipette cap for this bottle and all DIN18 caps that aren't bound to a specific bottle size.

Height : 72,5 ±0,7 mm (can deviate 0,7 mm)
Diameter: 30,5 +1,0 / -0,5 mm (can be 0,1 mm larger or 0,5 mm smaller)
Weight : 46 gr
Thread norm : DIN 168 / GL 18 (DIN18) Capacity to fill point: 20 ml
Capacity brimfull : 24,0 ±1,5 ml (can deviate 1,5 ml either way)

The amount after the ±- sign indicates the possible deviation that can occur during the production process.
i.e. 70,0 ± 0,7 mm means that the size is 70 mm is, with a possible downwards or upwards deviation of 0,7 mm (69,93 mm or 70,07 mm)


Miron violet glass 20 ml Orion bottle. DIN18, Miron item id: SM130004-204 / FL-20. Without cap/closure. A selection of suitable caps is listed further down on this page. The bottle fits the pipette cap for this bottle and all DIN18 caps that aren't bound to a specific bottle size.

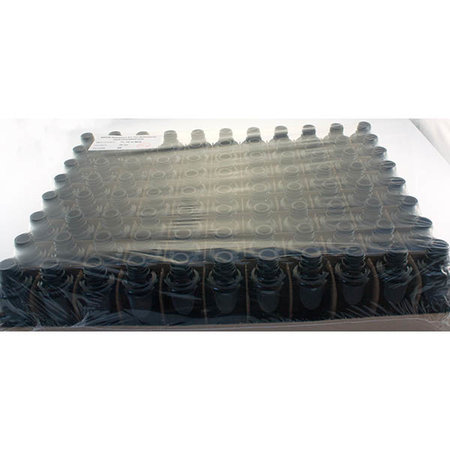

Safe-pack containing 108 pcs. Also available individually.

Miron violet glass 30 ml bottle. DIN18, Orion series. Miron item id SM130005-204 / FL-30. This bottle comes without cap / closure. It fits all DIN18 caps, except for the pipette caps for other size bottles and the wide pourer caps. A number of the caps that fit this bottle is listed further down on this page.

Height : 79,4 ±0,7 mm
Diameter: 34,0 +1,0 / -0,5 mm
Weight : 57 gr
Thread norm : DIN 168 / GL 18 (DIN18) Capacity to fill point 30 ml
Capacity brimfull : 34,0 ±1,5 ml

The amount after the ±- sign indicates the possible deviation that might occur during the production process.
i.e. 70,0 ± 0,7 mm means that the size is 70 mm is, with a possible downwards or upwards deviation of 0,7 mm (69,93 mm or 70,07 mm)


Miron violet glass 30 ml Orion DIN18 dropper bottle. Miron item id SM130005-204 / FL-30. This bottle comes without cap / closure. It fits all DIN18 caps, except for the pipette caps for other size bottles and the wide pourer caps.

Safe-pack containing 88 pcs. Also available individually.


Miron violet glass 50 ml bottle, DIN18, Orion series, Miron item id SM130006-204 / FL-50. Uncapped. This bottle fits all DIN18 caps that aren't specifically for another bottle size, in addition to the two pipette caps for this bottle and the aligned pourer cap that has the same width as the bottle.

Height 106,4 ±0,8 mm (can deviate by 0,8 mm, so 105.6 or 107,2 mm)
Diameter: 37,0 +1,0 / -0,5 mm
Weight : 100 gr
Thread norm : DIN 168 / GL 18 (DIN18) Capacity to fill point 50 ml
Capacity brimfull 56,0 ±3,0 ml (can deviate 3 ml either way)



The amount after the ±- sign indicates the possible deviation that can occur during the production process.
i.e. 70,0 ± 0,7 mm means that the size is 70 mm is, with a possible downwards or upwards deviation of 0,7 mm (69,93 mm or 70,07 mm)


Miron violet glass Orion 50 ml dropper bottle, Miron article number FL-50. NO Closure. This bottle fits all DIN18 closures that aren't specifically for another bottle size. It also has a pourer cap that is as wide as the bottle.

Safe-pack containing 70 pcs. Also available individually.


Miron violet glass Orion 60 ml DIN18 bottle. DIN18. W/O Closure. This bottle fits the pipette caps for this bottle and all DIN18 caps that aren't made for a specific bottle size. Miron item code: FL-60 / SM181004-204

Specifications:
Series: Orion
Height: 111,5 mm +/- 1,1 mm
Diameter: 38,1 mm, + 1 mm / - 0,5 mm
Closure: DIN 168 / GL 18
Capacity to fill point: 60 ml (2 fl oz.)
Capacity brimful: 66 ml +/- 2 ml
Weight: 105 gr.

The measurements mentioned after the +/- sign are the small deviations that can occur during production.


Miron violet glass 60 ml Orion DIN18 dropper bottle, 70 pcs safe-pack (also available individually). W/O Closure. This bottle fits the pipette caps for this bottle and all DIN18 caps that aren't made for a specific bottle size. Miron item code: FL-60 - SM181004-204


Miron violet glass 100 ml Orion DIN18 bottle. Miron item id SM130001-204 / FL-100. Without closure. This bottle has a DIN18 thread and fits all DIN18 closures except for the ones that are made for specific bottle sizes (i.e. pipette caps for smaller bottles).

Height : 125,5 ±0,9 mm
Diameter: 45,0 +1,1 / -0,6 mm
Weight : 135 gr
Thread norm : DIN 168 / GL 18 (DIN18) Capacity to fill point : 100 ml
Capacity brimfull : 114,4 ±3,2 ml

The amount after the ±- sign indicates the possible deviation that might occur during the production process.
i.e. 70,0 ± 0,7 mm means that the size is 70 mm is, with a possible downwards or upwards deviation of 0,7 mm (69,93 mm or 70,07 mm)


Miron violet glass 100 ml bottle Orion. Miron item id: SM130001-204 /  FL-100. Without cap. This bottle has a DIN18 closure and fits all DIN18 caps except for the ones that are made for specific bottle sizes (i.e. pipette caps for smaller bottles).

Safe-pack containing 48 pcs. Also available individually.
